產品中心

產品中心

Product Center

螺旋輸送機
螺旋輸送機
螺旋輸送機
螺旋輸送機
螺旋輸送機
螺旋輸送機
螺旋輸送機
螺旋輸送機

螺旋輸送機

產品類型:輸送機
上架時間:2022-07-25
瀏覽次數:1069
產品簡述:產品描述:該機是利用電機帶動螺旋回轉,推動物料以實現輸送的機械。它能水平、傾斜或垂直輸送,是輸送各種粉粒料的理想設備。The machine uses motor to drive spiral rotation and to promote material to realize conveying.It can be transported horizontally , obliquely or vertically . It is an ideal equipment f...
產品詳情

產品描述:

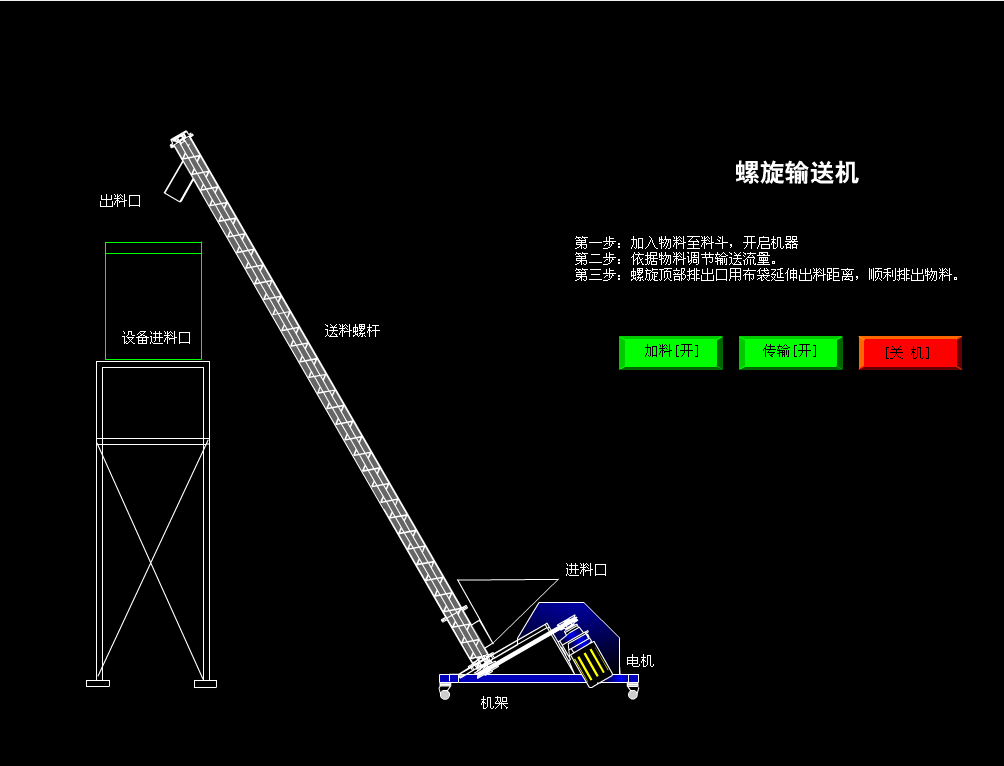

該機是利用電機帶動螺旋回轉,推動物料以實現輸送的機械。

它能水平、傾斜或垂直輸送,是輸送各種粉粒料的理想設備。

The machine uses motor to drive spiral rotation and to promote material to realize conveying.

It can be transported horizontally , obliquely or vertically . It is an ideal equipment for transporting various kinds of powder.



產品應用:

可與許多粉狀或顆粒狀產品的包裝相匹配。

適用于食品、醫藥、化工、粉體、味精等行業。

Competible with many packing equipments for powder or granule products.

Applicale with food pharmaceutical and chemical industry etc powder, monosodium glutamate etc.



產品特點:

1.Humanization design, easy dismantle, separate product contact parts for cleaning without tools, no uncovered corners, particulary suitable for food packing industry.

It takes one person one minute to complete the entir dismantlement process. It saves time and energy, safe and efficient.

2.Hopper with arch breaker device to help you to solve bridge issue.

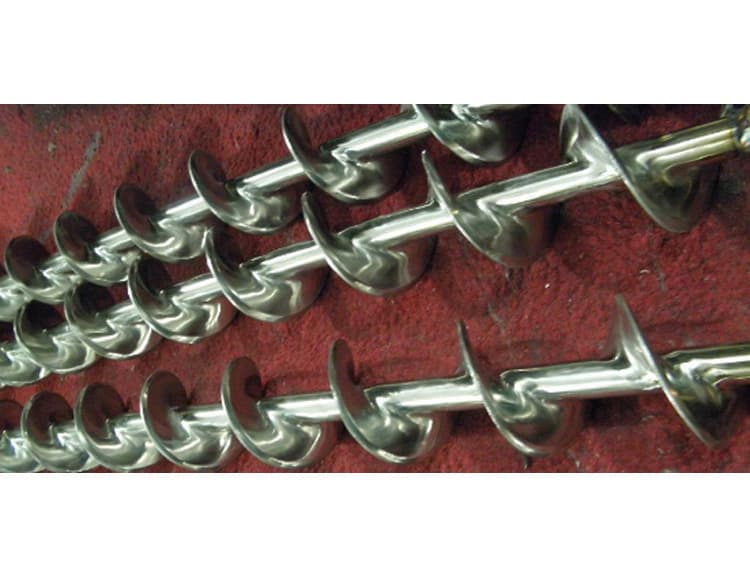

3. Upgeade component: Polished screw, Semi-opening tube.

4. This model offers both standard and customized machine of your choice.


技術參數:

輸送仰角β=450,螺旋轉速n=134r/min(可加裝變頻調速)Conveying elevationβ=450, screw speed n=134r/min( variable   frequency speed can be installed)

型號

STLS-10

STLS-12

STLS-14

STLS-16

STLS-20

STLS-25

筒內徑

100

120

140

160

200

250

電機功率

0.75

1.1

1.5

2.2

4

5.5

*大裝料重量(t/h)

0.5-2

0.8-2.5

1-4

1.5-6

2-8

3-10
